              Alien Autopsy: Reverse Engineering Win32 Trojans on Linux

              In my last article, Reverse Engineering Hostile Code, I described the tools and processes involved in basic reverse engineering of a simple trojan. This article will offer a more detailed examination of the reversing process, using a trojan found in the wild. At the same time, this article will discuss some techniques for reversing Windows-native code entirely under Linux. As an added bonus, all the tools used in this article are either freeware or free software. They are:

              • Wine - the Win32 API implementation for Unix;
              • gdb - our favorite Unix debugger and disassembly environment; and,
              • IDA Pro Freeware Version - Win32 disassembler (runs on Linux under Wine release 20021007, may run under other versions as well).

              Note: Readers who haven't read the previous article, Reverse Engineering Hostile Code, may want to stop and do that now, unless they already have some knowledge of C and assembly language.

              Getting a Deadlisting

              A deadlisting is simply a dump of the assembly language code of the trojan. We will be using IDA Pro Freeware Version for this purpose. This program does a terrific job of cross-referencing jumps, calls and string data, and really makes the assembly source easy to read. The best part is it now works on Linux under Wine. Just download the distribution from DataRescue's site, and unzip it into an empty directory. Then change to the directory where you unzipped IDA and run the Wine utility wcmd from the programs subdirectory of the Wine source code.

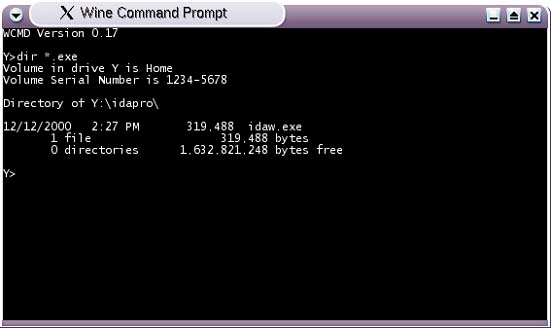

              Figure 1 - wcmd, the command.com replacement for Wine

              A new console window should open as shown in figure 1. This is an environment similar to CMD.EXE or COMMAND.COM on Windows. Since you started wcmd while in the idapro directory, you now need to simply type "idaw.exe" into the wcmd window and press enter. If successful, you should see the wcmd screen change as shown in figure 2. You are now running IDA Pro under Linux.

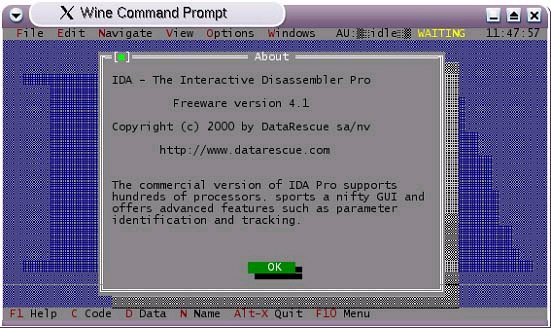

              Figure 2 - IDA Pro Freeware Version, running under Wine

              If you click OK, you will see the file chooser dialog. Browse the directory tree looking for the Win32 executable you want to disassemble and click OK. Next, it will ask for some file format options. The defaults are usually sane, so you can click OK on this dialog. IDA will go to work processing all the information it finds in the executable format, and will show a "thinking" indicator in the toolbar while it is working. It can take a few seconds to several minutes to run, depending on the size of the file.

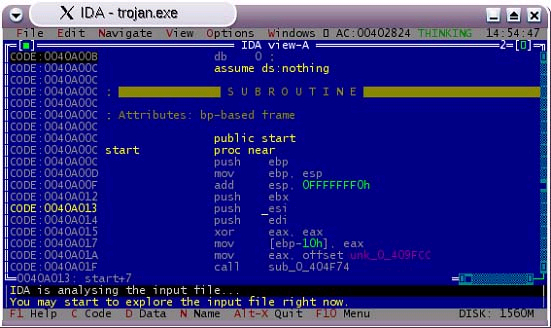

              Figure 3 - IDA analyzing the code

              After IDA finishes its analysis, select "File|Produce output file|Produce LST file" from the menus and save the file to disk. You now have a deadlisting of the Win32 PE file.

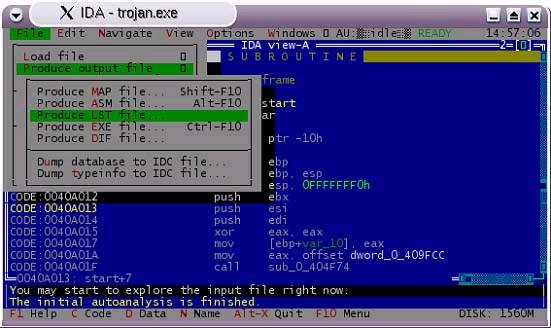

              Figure 4 - Saving the deadlisting

              Reading the Deadlisting

              Open the .LST file you saved in any text editor, and find the start of the program. It is usually not at the top of the file; you can search for "start" or sometimes "WinMain". In this trojan, execution begins at offset 0x40A00C. This is where we will begin reading through the code. The main clues available in the deadlisting are Win32 API calls (which IDA Pro nicely labels for us) and offsets to string data. Here is the start of the main subroutine, all the way to the first API call:

              CODE:0040A00CCODE:0040A00C ; 000000000000 S U B R O U T I N E 000000000000
              CODE:0040A00CCODE:0040A00C ; Attributes: bp-based frameCODE:0040A00CCODE:0040A00C
              public startCODE:0040A00C start proc nearCODE:0040A00CCODE:0040A00C var_10 = dword
              ptr -10hCODE:0040A00CCODE:0040A00C push ebpCODE:0040A00D mov ebp, espCODE:0040A00F
              add esp, 0FFFFFFF0hCODE:0040A012 push ebxCODE:0040A013 push esiCODE:0040A014 push
              ediCODE:0040A015 xor eax, eaxCODE:0040A017 mov [ebp+var_10], eaxCODE:0040A01A mov eax,
              offset dword_0_409FCCCODE:0040A01F call sub_0_404F74CODE:0040A024 mov edi, offset
              unk_0_40C7B8CODE:0040A029 xor eax, eaxCODE:0040A02B push ebpCODE:0040A02C push offset
              loc_0_40A15ECODE:0040A031 push dword ptr fs:[eax]CODE:0040A034 mov fs:[eax],
              espCODE:0040A037 push offset unk_0_40C604CODE:0040A03C push 2CODE:0040A03E call j_WSAStartup



              j_WSAStartup is a local subroutine which acts as a wrapper for the Win32 API call. Given this, we know this program is likely to be opening a socket for network communication.

              CODE:0040A043 push 6CODE:0040A045 push 1CODE:0040A047 push 2CODE:0040A049
              call j_socketCODE:0040A04E mov ebx, eaxCODE:0040A050 mov ds:word_0_40C794,
              1CODE:0040A059 mov ds:word_0_40C796, 0CODE:0040A062 push 4CODE:0040A064 push
              offset word_0_40C794CODE:0040A069 push 80hCODE:0040A06E push 0FFFFhCODE:0040A073
              push ebxCODE:0040A074 call j_setsockopt



              Two more wrapped API calls, socket and setsockopt. We're going to be looking up Win32 API calls every step of the way, so let's discuss resources in this area. There are some good books on the subject, but you may find that the online, searchable MSDN Documentation is a better resource to have while deep inside a deadlisting.

              Looking up the socket function prototype, we see that programs must prepare the call as follows:

              SOCKET socket(int af, int type, int protocol);

              At the assembly level, these arguments are passed to the system by pushing them onto the stack, last argument first. Look at the lines we found starting at offset 0x40A043 above, just prior to the j_socket call:

              CODE:0040A043 push 6CODE:0040A045 push 1CODE:0040A047 push 2CODE:0040A049 call j_socket



              So, when calling socket, the variable af would have a value of 2, type would have a value of 1, and protocol would have a value of 6. Referring to the MSDN documentation we see that an af value of 2 means AF_INET, or Internet address family. A type 1 socket is defined as SOCK_STREAM, and protocol 6 is TCP. So our trojan is establishing a TCP socket. We still don't know on what port the socket is to be opened, and if it is to be a listener or a client. Continue reading through the deadlisting.

              CODE:0040A074 call j_setsockoptCODE:0040A079 mov ds:word_0_40C798,
              2CODE:0040A082 call sub_0_402700CODE:0040A087 dec eaxCODE:0040A088
              jnz short loc_0_40A0A5CODE:0040A08A lea edx, [ebp+var_10]CODE:0040A08D
              mov eax, 1CODE:0040A092 call sub_0_402760CODE:0040A097 mov eax,
              [ebp+var_10]CODE:0040A09A call sub_0_405EA0CODE:0040A09F mov
              ds:word_0_40B2C0, axCODE:0040A0A5CODE:0040A0A5 loc_0_40A0A5: ;
              CODE XREF: start+7C^XjCODE:0040A0A5 mov ax, ds:word_0_40B2C0CODE:0040A0AB
              push eaxCODE:0040A0AC call j_htonsCODE:0040A0B1 mov ds:word_0_40C79A,
              axCODE:0040A0B7 push 10hCODE:0040A0B9 push offset word_0_40C798CODE:0040A0BE
              push ebxCODE:0040A0BF call j_bind



              The call to bind is prototyped as follows:

              int bind(SOCKET s, const struct SOCK_ADDR* name, int namelen);

              So at this point, the EBX register contains a pointer to the socket, and the data segment offset 0x40C798 should contain our SOCK_ADDR structure which is 16 bytes long (10h). The SOCK_ADDR structure for TCP is defined as:

              struct sockaddr_in { short sin_family; u_short sin_port;
              struct in_addr sin_addr; char sin_zero[8];};

              The port number is contained in this structure (sin_port). It is in network byte-order (big endian), so if the port was a stored in a variable, it had to be converted from the x86's normal host byte-order (little-endian). Sure enough, if we look back to offset 0x40A0AC, we see the API call htons, which converts a 16-bit short integer from host order to network order. So the argument to this call (EAX at 0x40A0AC) is our port number. Let's jump back and look at the code just prior to the htons call, in order to see how our port variable got filled:

              CODE:0040A09A call sub_0_405EA0CODE:0040A09F mov ds:word_0_40B2C0,
              axCODE:0040A0A5 mov ax, ds:word_0_40B2C0CODE:0040A0AB push eaxCODE:0040A0AC call j_htons



              Tracing the origin of the value in EAX back from 0x40A0AC shows us it was likely a return value from subroutine 0x405EA0 called at 0x40A09A. This means we'll have to trace back at least one subroutine, maybe more, to find the port number. But we don't care to do all that work, so we will get that information another way. For now, let's return to where we were and continue on:

              CODE:0040A0C4CODE:0040A0C4 loc_0_40A0C4: ; CODE XREF:
              start+125^YjCODE:0040A0C4 push 5CODE:0040A0C6 push ebxCODE:0040A0C7
              call j_listenCODE:0040A0CC mov dword ptr [edi], 10hCODE:0040A0D2 push
              ediCODE:0040A0D3 push offset unk_0_40C7A8CODE:0040A0D8 push ebxCODE:0040A0D9 call j_accept



              At this point, seeing the accept call tells us we are going to be a listener. Now we would like to know on what port.

              Running the Code: Wine+gdb

              The Wine project has ported a large set of the Win32 API calls to Linux. This enables us to run our trojan under Linux, and use gdb to debug it as if it were a native Linux executable. Wine has its own debugger, which could also serve the same purpose; however, gdb is more feature-rich. The only drawback to using gdb is that you must first trace your way through the Wine code, instead of working immediately on the Win32 code. I have a couple of breakpoints I will share below that can quickly get you past the Wine routines to land at the start of the Win32 process.

              Don't forget the basic rules of reversing unknown/hostile code. Always work on non-production machines, on a network segment specifically designed to contain the trojan's traffic. Now that the safety lecture is over, launch gdb with the path to the Wine executable (not the trojan) as an argument. On my system, I would run the following command:

              gdb /usr/bin/wine.bin






              This would produce the following output. (Commands to enter after starting gdb are shown below in bold; comments in red are the author's notes)

              GNU gdb 5.2.1-2mdk (Mandrake Linux)Copyright 2002 Free Software Foundation,
              Inc.GDB is free software, covered by the GNU General Public License,
              and you are welcome to change it and/or distribute copies of it under
              certain conditions. Type "show copying" to see the conditions.There is
              absolutely no warranty for GDB. Type "show warranty" for details.
              This GDB was configured as "i586-mandrake-linux-gnu"...(no debugging symbols found)...
              (gdb) set args ./trojan.exe (Give gdb the argument to feed to Wine; the name
              of the trojan to load)(gdb) b PROCESS_InitWine (Set a breakpoint when Wine begins.
              This is to allow us to set breakpoints later on which are currently inaccessible
              since the code has not been loaded into memory yet) Breakpoint 1 at 0x80486d0(gdb)
              run (Run the program)Starting program: /usr/bin/wine.bin ./trojan.exe
              (no debugging symbols found)...(no debugging symbols found)...(no debugging symbols found)
              ...(no debugging symbols found)...(no debugging symbols found)...
              (no debugging symbols found)...Breakpoint 1, 0x400eea46 in PROCESS_InitWine
              () from /usr/lib/libntdll.dll.so(gdb) b SYSDEPS_SwitchToThreadStack
              (Set a breakpoint at beginning of Win32 program execution. After this breakpoint
              is reached we can set our target breakpoint at 0x40a0ab)Breakpoint 2 at 0x400f4d66(gdb) c
              (Continue executing the program)Could not stat /floppy (No such file or directory),
              ignoring drive A:Breakpoint 2, 0x400f4d66 in SYSDEPS_SwitchToThreadStack ()
              from /usr/lib/libntdll.dll.so(gdb) b * 0x0040a0ab (Set a breakpoint at the offset
              just prior to the htons API call. When setting a breakpoint on an offset,
              don't forget to prefix the offset with an asterisk)Breakpoint 3 at 0x40a0ab(gdb) c
              (Continue executing the program)Continuing.Breakpoint 3, 0x0040a0ab in ?? ()
              (We've hit our final breakpoint and landed in our trojan's main subroutine,
              just prior to the htons call. EAX should now contain our port number)(gdb) print/x
              (short) $eax (Print out the value in the EAX register)$1 = 0x4b8c (Our port number,
              in little-endian hexadecimal. 0x4b8c converted to decimal = 19340) (gdb) quit



              Without tracing through countless subroutines in the deadlisting we have determined the trojan would have opened a listener on port 19340.

              Coroner's Report

              At this point, we could continue reading the deadlisting and filling in the blanks in our knowledge by setting breakpoints and reading variables/memory in gdb until every function of the program is exposed. Obviously this short article can't cover every function of even this very small trojan, but hopefully it has given you enough information to strike out on your own and conquer new trojans with a little bit of assembly, a little bit of C, a little bit of luck and a lot of patience. At first you may feel overwhelmed when presented with thousands upon thousands of lines of assembly code, but it does get easier with experience. You will eventually find patterns in the larger picture and become more removed from the line-by-line analysis, almost as if you were "feeling" the code rather than just reading it.

              About the Trojan

              The code above is from a Win32 backdoor found on a compromised system. Connecting to the listener produces a banner of "Barvinok NT Shell v1.0" and a password prompt. The password is hard-coded in the binary and readable in a "strings" output. After entering the password you have a basic NT command-line shell.
