              Threat Analysis

              WCry Ransomware Analysis

              By: Counter Threat Unit Research Team

              Summary

              In May 2017, SecureWorks® Counter Threat Unit® (CTU) researchers investigated a widespread and opportunistic WCry (also known as WanaCry, WanaCrypt, and Wana Decrypt0r) ransomware campaign that impacted many systems around the world. Some affected systems have national importance. CTU® researchers link the rapid spread of the ransomware to use of a separate worm component that exploited vulnerabilities in the Windows Server Message Block (SMB) v1 protocol. Microsoft addressed the SMBv1 vulnerabilities in March 2017 with Security Bulletin MS17-010.

              Delivery

              The campaign’s use of an SMB worm to distribute WCry contributed to the ransomware’s virulence. As of this publication, the specific delivery method for the SMB worm is unclear. Upon starting, the worm attempts an HTTP connection to www . iuqerfsodp9ifjaposdfjhgosurijfaewrwergwea . com. If the connection is successful, then the worm stops running and exits. The threat actors may have added this HTTP connection test to prevent automated sandboxes from running and analyzing the malware.

              The worm leverages an SMBv1 exploit that originates from tools released by the Shadow Brokers threat group in April. The worm specifically scans for the existence of the DoublePulsar backdoor on compromised systems. If the DoublePulsar backdoor does not exist, then the SMB worm attempts to compromise the target using the Eternalblue SMBv1 exploit. Propagation relies on two process threads. After the first thread determines the local network subnet, the SMB worm scans local addresses beginning at the start of the netblock and increasing by one to the end of the netblock. The second thread scans randomly chosen external IP addresses.

              The SMB worm delivers itself to the compromised system as a DLL file payload. After the DLL is executed with a single exported function named PlayGame, it writes a copy of the original SMB worm to C:\Windows\mssecsvc.exe and then executes this file. The SMB worm then drops a secondary payload from its resources section to C:\Windows\tasksche.exe and executes this file. In the samples analyzed by CTU researchers, this secondary payload is the WCry ransomware.

              Infection

              After encrypting the file system, WCry displays the ransom demand shown in Figure 1.

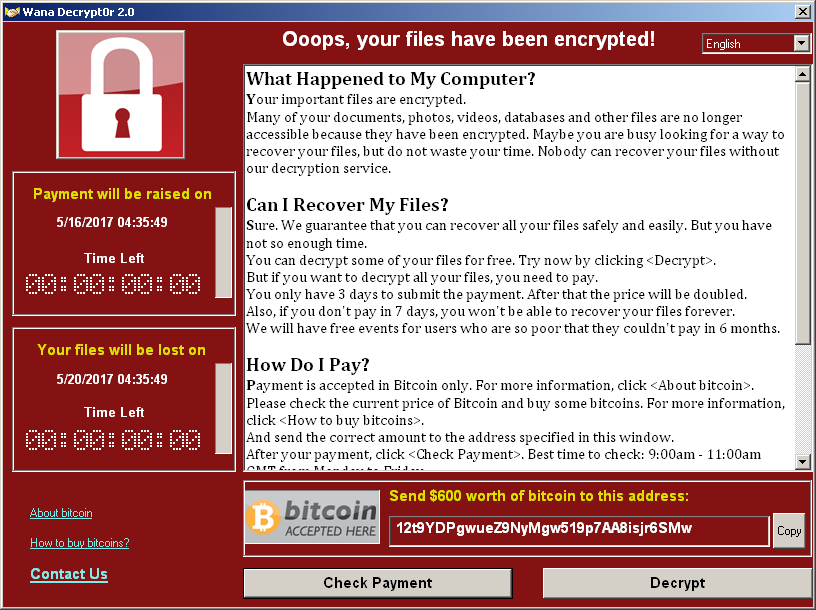

              WCry (also known as Wana Decrypt0r) ransom demand interface. (Source: SecureWorks)

              Figure 1. WCry (also known as Wana Decrypt0r) ransom demand interface. (Source: SecureWorks)

              The malware continually monitors this window to ensure it remains in focus, reopening it if it is closed. WCry also launches a small program named taskse.exe that enumerates active RDP sessions and ensures the remote user can see the window. Additionally, the malware changes the desktop wallpaper to the image in Figure 2.

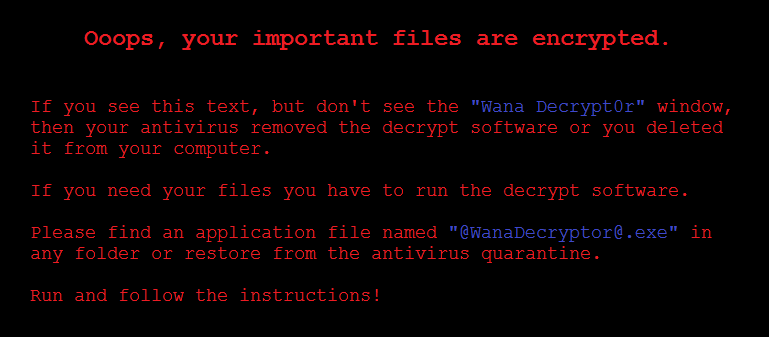

              Desktop wallpaper set by WCry ransomware. (Source: SecureWorks)

              Figure 2. Desktop wallpaper set by WCry ransomware. (Source: SecureWorks)

              WCry is distributed as an executable file that contains a password-protected ZIP archive in its resources section. When executed, this archive is unpacked (using the password “WNcry@2ol7”) in the current directory and contains the following files:

              • b.wnry — Bitmap image used as desktop wallpaper (shown in Figure 2)
              • c.wnry — Configuration containing Tor command and control (C2) addresses, Bitcoin addresses, and other data
              • r.wnry — Ransom demand text
              • s.wnry — ZIP archive containing Tor software to be installed on the victim’s system; saved in TaskData directory
              • t.wnry — Encrypted DLL containing file-encryption functionality
              • u.wnry — Main module of the WCry ransomware “decryptor”
              • taskdl.exe — WNCRYT temporary file cleanup program
              • taskse.exe — Program that displays decryptor window to RDP sessions
              • msg — Directory containing Rich Text Format (RTF) ransom demands in multiple languages

              WCry creates additional files during the infection:

              • 00000000.pky — Microsoft PUBLICKEYBLOB containing the RSA-2048 public key (The WCry threat actors presumably hold the private key.)
              • 00000000.res — Data for C2 communication
              • 00000000.eky — Victim-unique RSA private key encrypted with embedded RSA public key
              • 00000000.dky — Decrypted RSA private key transmitted to victim after ransom payment
              • f.wnry — A list of randomly chosen files encrypted with an embedded RSA private key that allows WCry to “demonstrate” decryption to victims
              • @WanaDecryptor@.exe — Main module of the WCry ransomware “decryptor,” identical to u.wnry
              • @Please_Read_Me@.txt — Ransom demand text, identical to r.wnry

              When started, WCry executes two commands:

              • attrib +h .
              • icacls . /grant Everyone:F /T /C /Q

              WCry executes the following single command (formatted for readability) to complicate system and data recovery. If the malware is not running with elevated privileges, WCry executes this with the “runas” command.

              cmd.exe /c vssadmin delete shadows /all /quiet &
              wmic shadowcopy delete &
              bcdedit /set {default} bootstatuspolicy ignoreallfailures &
              bcdedit /set {default} recoveryenabled no &
              wbadmin delete catalog -quiet

              WCry terminates several services so that their data stores can be encrypted:

              • taskkill.exe /f /im mysqld.exe
              • taskkill.exe /f /im sqlwriter.exe
              • taskkill.exe /f /im sqlserver.exe
              • taskkill.exe /f /im MSExchange*
              • taskkill.exe /f /im Microsoft.Exchange.*

              WCry creates a batch file using a randomly generated large integer (e.g., 46631494859358.bat, 37061494619317.bat) that creates a shortcut to the malware executable (see Figure 3).

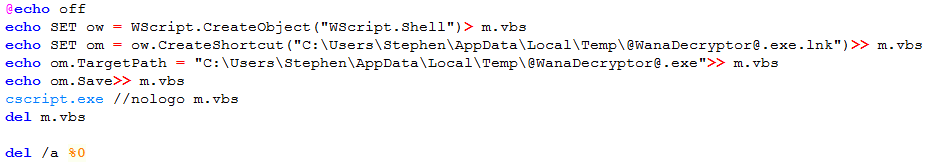

              Batch file executed by WCry ransomware. (Source: SecureWorks)

              Figure 3. Batch file executed by WCry ransomware. (Source: SecureWorks)

              The malware’s current working directory is saved to the “wd” registry value under the \SOFTWARE\WanaCrypt0r key (see Figure 4). If WCry is running with elevated privileges, the key is created in the HKLM registry hive; otherwise, it is created in the HKCU hive.

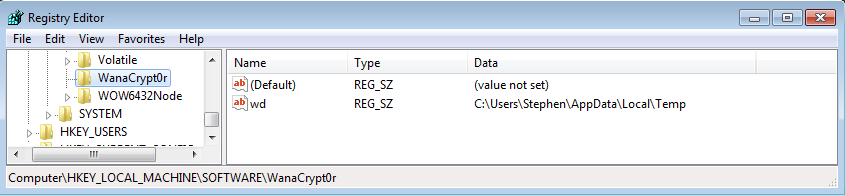

              Metadata stored in registry by WCry ransomware. (Source: SecureWorks)

              Figure 4. Metadata stored in registry by WCry ransomware. (Source: SecureWorks)

              WCry creates a registry Run key value (see Figure 5) to ensure the ransomware GUI is displayed when victims log in or restart the computer.

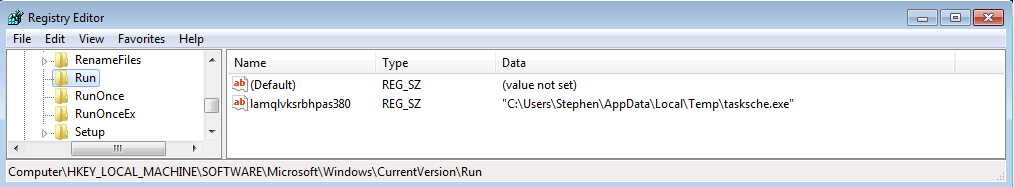

              Run key created by WCry ransomware. (Source: SecureWorks)

              Figure 5. Run key created by WCry ransomware. (Source: SecureWorks)

              Encryption

              WCry uses a combination of the RSA and AES algorithms to encrypt files. It uses the Windows Crypto API for RSA encryption and random key generation; however, a third-party implementation of AES is statically linked within the malware. CTU researchers did not identify any flaws in the cryptographic implementation, so file recovery through decryption is likely not possible without a decrypted private key from the ransomware operators.

              Prior to encryption, WCry enumerates all available disks on the system. This enumeration includes local drives (e.g., hard disks), removable drives (e.g., USB thumb drives), and network drives (e.g., a remote file share mapped to a drive letter). The malware does not contain functionality to search the local network for unmapped file shares. WCry also searches for the presence of the Global\MsWinZonesCacheCounterMutexA mutex prior to file encryption and exits if the mutex exists.

              WCry targets file extensions associated with productivity and database applications, compressed archives, and multimedia formats (see Figure 6). The encryption process skips files whose pathnames contain the directory names and language listed in Table 1.

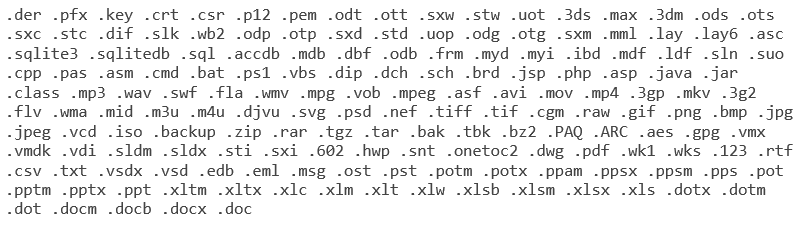

              File extensions targeted by WCry ransomware. (Source: SecureWorks)

              Figure 6. File extensions targeted by WCry ransomware. (Source: SecureWorks)

              Content.IE5

              Temporary Internet Files

              \LocalSettings\Temp

              ppData\Local\Temp

              \Program Files

              \Program Files (x86)

              \WINDOWS

              \ProgramData

              \Intel

              This folder protects against ransomware. Modifying it will reduce protection

              Table 1. Whitelisted directory name components.

              WCry generates a private RSA-2048 key pair specific to each infection and stores it on the local disk with an .eky extension (e.g., 00000000.eky) after encrypting it with an embedded RSA public key. This generated RSA key is used to encrypt the random AES-128 key generated for each encrypted file.

              Each targeted file is opened, read, encrypted in memory, and then written to a new file in the malware’s working directory using the filename format <random number>.WNCRYT. The files are then renamed to their original filename followed by the .WINCRY extension and moved to their original directory. The taskdl.exe process launched by the malware periodically deletes the remaining WINCRYT temporary files. The encryption process does not directly overwrite file data, so forensic recovery of file contents may be possible depending on the environment. The entire contents of the file are encrypted and saved with a custom header (see Figure 7).

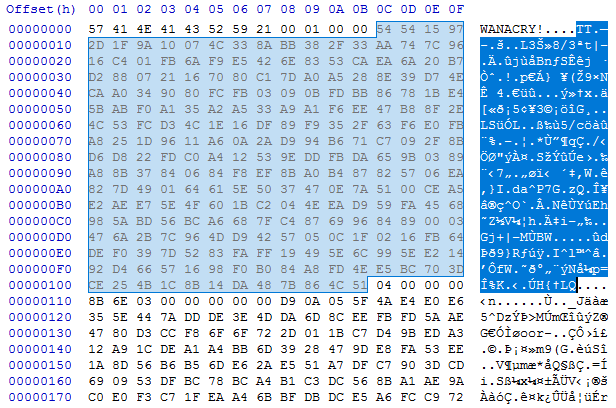

              WCry file header prepended to encrypted file (encrypted AES key highlighted). (Source: SecureWorks)

              Figure 7. WCry file header prepended to encrypted file (encrypted AES key highlighted). (Source: SecureWorks)

              The header follows the pattern shown in Figure 8, which allows the malware to identify previously encrypted files and reliably decrypt them.

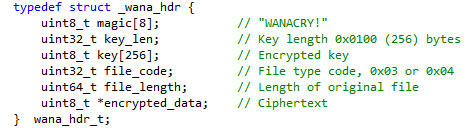

              WCry encrypted file header. (Source: SecureWorks)

              Figure 8. WCry encrypted file header. (Source: SecureWorks)

              Payment

              After infecting a system, WCry displays a timer that counts down to the dates when the ransom amount increases (four days) and when files will be irrecoverable (seven days). WCry can be configured to demand different ransom amounts in dollars or bitcoins. CTU researchers observed WCry variants demanding Bitcoin payments equivalent to $300 and $600. The Bitcoin address is provided in the c.wnry configuration file and can vary across samples. If no configuration file is present, the malware uses a hard-coded Bitcoin address. CTU researchers have identified the following Bitcoin addresses associated with the WCry ransomware:


              CTU researchers have no evidence that the WCry threat actors have the capability or intent to decrypt files for paying victims. Many ransomware families assign each victim a unique Bitcoin address so the threat actors can attribute a payment directly to an infection and associated decryption key. WCry does not include this feature, so the threat actor must rely on communication with the victim to make the connection.

              Command and control (C2) traffic

              WCry installs the Tor network anonymity software on the infected system in the TaskData folder within the malware’s working directory. The local Tor server is renamed and executed as taskhsvc.exe. Tor establishes a SOCKS5 proxy server on the loopback interface (127.0.0.1) that listens on TCP port 9050. WCry connects to this proxy and attempts to contact the configured C2 hidden services:

              • gx7ekbenv2riucmf . onion
              • 57g7spgrzlojinas . onion
              • xxlvbrloxvriy2c5 . onion
              • 76jdd2ir2embyv47 . onion
              • cwwnhwhlz52maqm7 . onion

              After connecting to a C2 server, the malware uses a custom encrypted protocol over TCP port 80 through the Tor circuit to transmit encryption keys, to allow victims to communicate with the operators, and to check payment status. WCry does not exfiltrate documents, steal stored credentials, or receive and execute additional files.

              Conclusion

              WCry is an opportunistic ransomware family whose propagation methods allow it to spread quickly. CTU researchers recommend that clients implement the following best practices to mitigate the threat:

              • Apply the Microsoft security updates for MS17-010, including the updates for the Windows XP and Windows Server 2003 legacy operating systems.
              • Disable SMBv1 on systems where it is not necessary (e.g., hosts that do not need to communicate with Windows XP and Windows 2000 systems). Carefully evaluate the need for allowing SMBv1-capable systems on interconnected networks compared to the associated risks.
              • Segment networks to isolate hosts that cannot be patched, and block SMBv1 from traversing those networks.
              • Scan networks for the presence of the DoublePulsar backdoor using plugins for tools such as Nmap.
              • Use network auditing tools to scan networks for hosts that are vulnerable to the vulnerabilities described in MS17-010.
              • Filter emails containing potentially dangerous file types such as executables, scripts, or macro-enabled documents.
              • Implement a backup strategy that includes storing data using offline backup media. Backups to locally connected, network-attached, or cloud-based storage are often insufficient because ransomware frequently accesses and encrypts files stored on these systems.

              Threat indicators

              The threat indicators in Table 2 can be used to detect activity related to WCry and associated delivery mechanisms. The domains may contain malicious content, so consider the risks before opening them in a browser.

              Indicator

              Type

              Context

              gx7ekbenv2riucmf.onion

              Tor address

              WCry C2 server

              57g7spgrzlojinas.onion

              Tor address

              WCry C2 server

              xxlvbrloxvriy2c5.onion

              Tor address

              WCry C2 server

              76jdd2ir2embyv47.onion

              Tor address

              WCry C2 server

              cwwnhwhlz52maqm7.onion

              Tor address

              WCry C2 server

              Microsoft Security Center (2.0) Service

              Service display name

              WCry SMB worm

              mssecsvc2.0

              Service name

              WCry SMB worm

              C:\Windows\mssecsvc.exe

              Filename

              WCry SMB worm

              C:\Windows\Tasksche.exe

              Filename

              WCry SMB worm payload

              C:\Windows\qeriuwjhrf

              Filename

              WCry SMB worm payload copy

              db349b97c37d22f5ea1d1841e3c89eb4

              MD5 hash

              WCry SMB worm

              e889544aff85ffaf8b0d0da705105dee7c97fe26

              SHA1 hash

              WCry SMB worm

              24d004a104d4d54034dbcffc2a4b19a11f39008a575aa614ea04703480b1022c

              SHA256 hash

              WCry SMB worm

              Global\MsWinZonesCacheCounterMutexW

              Mutex

              WCry exclusion flag

              %PROGRAMDATA%\%RAND%\00000000.eky

              Filename

              WCry encryption key

              63fb6dd827559c0ed40c4c3725f7fc0a

              MD5 hash

              WCry encryption key

              8e7211b1455dedfe1f84cc60a7ed593f78dfb6e1

              SHA1 hash

              WCry encryption key

              24076e8485c72e4f9cf997c1f3670337231e401a043505e489606fff5758150f

              SHA256 hash

              WCry encryption key

              00000000.pky

              Filename

              WCry public key

              f5c0755e5f08dabf1119c193e96539a6

              MD5 hash

              WCry public key

              5109c0738c126e65db8a92e1ff24f3291837f627

              SHA1 hash

              WCry public key

              c863b4b4780d6ce53827049d3733863283aaeb4d4ae806fc2c5cfbd9eb236ab8

              SHA256 hash

              WCry public key

              00000000.res

              Filename

              WCry C2 communication data

              492c258c5bcbdd812fddd99b2427da99

              MD5 hash

              WCry C2 communication data (00000000.res)

              0c16196d93b076f4648a9b1b027e7735845cab20

              SHA1 hash

              WCry C2 communication data (00000000.res)

              6fa17600177c2032c3c3a3c06df6cf7d8dba1d32db146d9dd87aecf3f39fb898

              SHA256 hash

              WCry C2 communication data (00000000.res)

              b.wnry

              Filename

              WCry ransom demand desktop wallpaper

              c17170262312f3be7027bc2ca825bf0c

              MD5 hash

              WCry ransom demand desktop wallpaper (b.wnry)

              f19eceda82973239a1fdc5826bce7691e5dcb4fb

              SHA1 hash

              WCry ransom demand desktop wallpaper (b.wnry)

              d5e0e8694ddc0548d8e6b87c83d50f4ab85c1debadb106d6a6a794c3e746f4fa

              SHA256 hash

              WCry ransom demand desktop wallpaper (b.wnry)

              c.wnry

              Filename

              WCry configuration file

              fa44d43242f0bcc6d64569e4869e4913

              MD5 hash

              WCry configuration file (c.wnry)

              29da372c816ac0d636657a76ab7712ae8106cb45

              SHA1 hash

              WCry configuration file (c.wnry)

              3324483d27e716feb408b5d16b82540731faf435b9325497df779d72e7a6b765

              SHA256 hash

              WCry configuration file (c.wnry)

              f.wnry

              Filename

              WCry decryption demonstration file list

              @Please_Read_Me@.txt

              Filename

              WCry ransom note

              r.wnry

              Filename

              WCry ransom note

              3e0020fc529b1c2a061016dd2469ba96

              MD5 hash

              WCry ransom note

              c3a91c22b63f6fe709e7c29cafb29a2ee83e6ade

              SHA1 hash

              WCry ransom note

              402751fa49e0cb68fe052cb3db87b05e71c1d950984d339940cf6b29409f2a7c

              SHA256 hash

              WCry ransom note

              s.wnry

              Filename

              WCry ZIP archive containing Tor software

              ad4c9de7c8c40813f200ba1c2fa33083

              MD5 hash

              WCry ZIP archive containing Tor software

              d1af27518d455d432b62d73c6a1497d032f6120e

              SHA1 hash

              WCry ZIP archive containing Tor software

              e18fdd912dfe5b45776e68d578c3af3547886cf1353d7086c8bee037436dff4b

              SHA256 hash

              WCry ZIP archive containing Tor software

              taskdl.exe

              Filename

              WCry temporary file cleanup program

              4fef5e34143e646dbf9907c4374276f5

              MD5 hash

              WCry temporary file cleanup program (taskdl.exe)

              47a9ad4125b6bd7c55e4e7da251e23f089407b8f

              SHA1 hash

              WCry temporary file cleanup program (taskdl.exe)

              4a468603fdcb7a2eb5770705898cf9ef37aade532a7964642ecd705a74794b79

              SHA256 hash

              WCry temporary file cleanup program (taskdl.exe)

              tasksche.exe

              Filename

              WCry installer

              84c82835a5d21bbcf75a61706d8ab549

              MD5 hash

              WCry installer

              5ff465afaabcbf0150d1a3ab2c2e74f3a4426467

              SHA1 hash

              WCry installer

              ed01ebfbc9eb5bbea545af4d01bf5f1071661840480439c6e5babe8e080e41aa

              SHA256 hash

              WCry installer

              taskse.exe

              Filename

              WCry RDP session decryptor display tool

              8495400f199ac77853c53b5a3f278f3e

              MD5 hash

              WCry RDP session decryptor display tool (taskse.exe)

              be5d6279874da315e3080b06083757aad9b32c23

              SHA1 hash

              WCry RDP session decryptor display tool (taskse.exe)

              2ca2d550e603d74dedda03156023135b38da3630cb014e3d00b1263358c5f00d

              SHA256 hash

              WCry RDP session decryptor display tool (taskse.exe)

              t.wnry

              Filename

              WCry file encryption DLL

              5dcaac857e695a65f5c3ef1441a73a8f

              MD5 hash

              WCry file encryption DLL

              7b10aaeee05e7a1efb43d9f837e9356ad55c07dd

              SHA1 hash

              WCry file encryption DLL

              97ebce49b14c46bebc9ec2448d00e1e397123b256e2be9eba5140688e7bc0ae6

              SHA256 hash

              WCry file encryption DLL

              @WanaDecryptor@.exe

              Filename

              WCry decryptor

              u.wnry

              Filename

              WCry decryptor

              7bf2b57f2a205768755c07f238fb32cc

              MD5 hash

              WCry decryptor (u.wnry and @WanaDecryptor@.exe)

              45356a9dd616ed7161a3b9192e2f318d0ab5ad10

              SHA1 hash

              WCry decryptor (u.wnry and @WanaDecryptor@.exe)

              b9c5d4339809e0ad9a00d4d3dd26fdf44a32819a54abf846bb9b560d81391c25

              SHA256 hash

              WCry decryptor (u.wnry and @WanaDecryptor@.exe)

              @WanaDecryptor@.exe.lnk

              Filename

              WCry decryptor shortcut

              Table 2. Threat indicators for WCry.
